Print Head

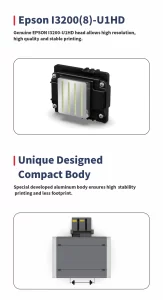

1 Epson I3200(8)-U1HD Print Heads

Curing System

1 Air Cooling LED UV Lamp

Ink

Specific REI-3 UV Ink Certified by Greenguard Gold

Color Configuration

CMYKLcLm+W+V

Ink Supply System

1L Bulk Supply System

Media Thickness

Up to 60mm

Media Type

Acrylic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass Bottle, Wood, Ceramic Tile, etc

Printing Size

Up to 300x420mm

Printing Speed

Printing mode          Resolution           Feather                 CMYK

Draft                       720x1200dpi         Normal              6m5s/sheet

Production              720x1200dpi         Strong             14m39s/sheet

Hi-Resolution          720x1800dpi         Normal            10m13s/sheet

Photo                      720x1800dpi         Strong              21m57s/sheet

Data lnterface

Gigabit Ethernet

Working Environment

Temp. 20℃~30℃, Humidity: 35%~65%

Software

FlexiPRINT Mini UV+GZ Printer Manager

Power Requirements

Single-Phase, AC220V±10%, 50Hz, 10A

Package / Installed Size

LxWxH(mm): 1320x1120x930 / 900x640x660

G.W. / N.W.

212kgs / 140kgs
