| ● | Industrial Duarable Print Heads |
| ● | EU Standard Safety Kit (Optional) |
| ● | High Standard Motion System |
| ● | Gntek Negative Pressure System |

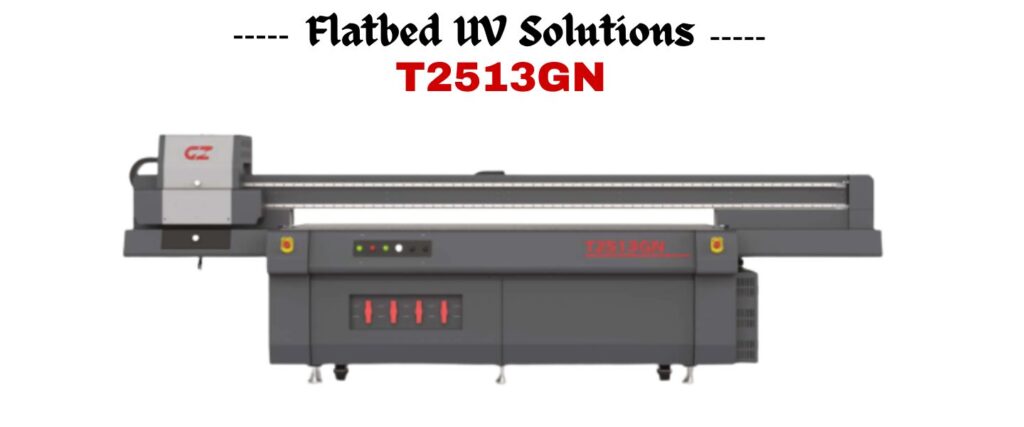

| Model | T2513GN |
| Print Head | 4~12 Ricoh Gen6 Print Heads |
| Curing System | Dual Water Cooling LED UV Curing Lamps |
| Ink | Specific RKA-3 UV Ink Certified by Greenguard Gold |
| Color Configuration | 2xWW+4xKCMY; 2xWW+2xKCMY; 1xWW+1xKCMY+1xVV |
| Ink Supply System | Gntek Negative Pressure System and White Ink Stirring & Circulation System |
| Ink Tank | 2500ml |
| Media Thickness | Max. 100mm |
| Media Type | Acrylic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass , Wood, Ceramic Tile, etc. |
| Table Size | 2650×1325mm |
| Printing Size | Max. 2500×1300mm |
| Printing Speed | Mode Resolution 4xKCMY 2xWW+2xKCMY 1xWW+1xKCMY+1xVV Draft 720x900dpi 72㎡/h 38㎡/h 17㎡/h Production 720x1200dpi 56㎡/h 29㎡/h 12㎡/h High-Res 720x900dpi 47㎡/h 23㎡/h 10㎡/h Photo 720x1200dpi 35㎡/h 17㎡/h 6㎡/h |
| Data Interface | External: USB3.0; Internal: Fiber Optical |
| Working Environment | Temp.20℃~30℃, Humidity: 35%~65% |
| Software | ONYX / FlexiPRINT UV +GZ Control Console |
| Power | Single-Phase, AC220V±10%, 50/60Hz, 13A(Printer & UV Controller)+21A(Vacuum System ) |
| Packed / Installed Size | LxWxH(mm): 4948x2175x1579 / 5420x2300x1800 |
| G.W. / N.W. | 2276KGS / 1758KGS |
